Medium Activity Gallium-68 Isolators

Medium activity isotopes such as Gallium-68 require controlled aseptic preparation alongside effective radiation protection to support safe and efficient radiopharmacy operations. With increasing demand for Gallium-68 (Ga68) radiopharmaceuticals across diagnostic and theranostic applications, isolators must balance operator protection with reliable workflow efficiency within tightly controlled environments.

Amercare’s medium activity Ga68 isolators are designed specifically for this purpose, combining containment, radiation shielding and workflow-focused design to support efficient preparation and dispensing while helping reduce operator exposure and maintain product integrity.

Whether you require a standard configuration or a system tailored to your specific process, each isolator is engineered to improve dispensing control, reduce handling risks and support consistent efficiency across your workflow.

Request a Quote Download Brochure

✓ Energy Efficient

✓ Market-Leading Quality

✓ ISO 14644-1 Class 5

✓ EU GMP Grade A

✓ ISO 14644 class 3 leak tight

Isolators Tailored for Medium Activity Radiopharmacy Applications

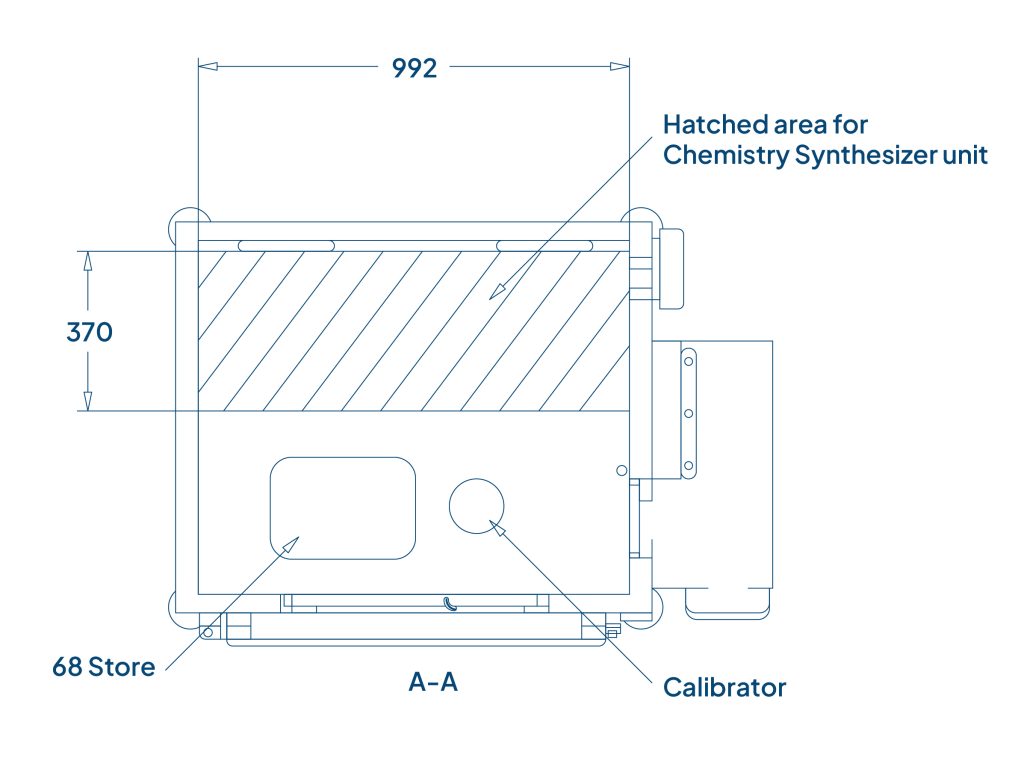

Amercare medium activity isolators are designed specifically for applications involving the handling of medium activity isotopes such as Gallium-68, technetium dispensing, preparation of therapy isotopes such as 131I, and PET dispensing applications including FDG. Integrated generator storage drawers with 60mm 360-degree interlocking lead shielding support safer dispensing while reducing manual handling requirements. Additional tailorable lead shielding helps protect operators during dispensing and preparation processes. Adaptable workzones can accommodate automated synthesis equipment to support efficient workflows and reduced operator intervention, alongside foot-operated dose calibrator dippers and real-time activity monitoring to further support safer, more controlled radiopharmaceutical handling.

Integrated Generator

Enables safe and efficient dispensing

360◦ Lead Protection

Protects operators from radiation exposure

Unidirectional Airflow

Delivers clean air across the work zone

Pneumatically Sealed

Fully leak tight to ISO 14644 class 3

Typical Medium Activity Isolator Features

Amercare Isolators are fully configurable to your requirements through our complementary design service.

Medium Activity Isolator Features & Options

Protecting People Products and Environments

Market-leading quality	Fully welded high-grade 3mm 316 stainless steel construction with satin bead blasted and passivated finishes	Included
Clean air environments	Equivalent to EU GMP Grade A and ISO 14644-1 Class 5	Included
Sealed environments	Pneumatically sealed inner panel delivers full leak-tightness to ISO 14644 Class 3	Included
High-efficiency filtration	HEPA filtered inlet and extract air delivers 99.995% efficiency at 0.3 microns (MPPS)	Included
Gas/odour filtration	Additional carbon filtration tailored to application	Optional
Controlled product transfer	Timed interlock transfer chamber control ensures controlled, sequential door operation and defined dwell times	Included
Radiation protection	Lead-lined chambers and viewing panels configurable for up to 360◦ protection	Included
Power loss protection	Battery backup maintains essential functions including door operation, interlocks and airflow monitoring	Optional

Simplify routine cleaning, service, and maintenance

Superior corrosion resistance	Constructed from high-grade 316 stainless steel with aluminium and plastic external surfaces	Included
Accessible cleaning	Fully accessible external surfaces, with all internal areas accessible through the glove ports	Included
Contain spillages	Seamless internal bases with no air grilles, cavities, or inaccessible areas	Included
Accessible testing	Accessible test points for routine maintenance and validation protocols	Included
Safe filter change	Prevent exposure during filter changes with safe change exhaust filters	Included
Maintain room pressure	Prevent disruption to surrounding environments during testing with an integrated bypass valve	Optional
Bio-decontamination	Gassing connections, gassing doors and a range of hydrogen peroxide vaporisation (HPV) systems available	Optional
Controlled waste disposal	Integrated waste bins and chutes with lock functionality	Optional
Enhanced validation	Further testing packages available including DQ, FAT, IQ, OQ and gas cycle development (optional)	Included

Monitor and validate with confidence

Leak integrity validation	Integrated automated pressure decay testing with out-of-hours function	Included
Real-time status	Microprocessor-based control system monitors and displays isolator status in real-time	Included
Safe operation assurance	A digital alarm system monitors key functions and provides immediate visual and audible alerts	Included
Continuous environmental insight	Real-time continuous particle monitoring via an integrated isokinetic sampling head inside the chamber	Optional
Full monitoring capability	Connections available for gas sterilisation, viable and non-viable air sampling, biological sampling and bespoke requirements	Configurable
Data traceability	Automatic data recording and optional printout functionality	Optional
Facility-wide monitoring and control	Connect seamlessly with BMS and EMS platforms	Optional

Operate with ease and efficiency

Save energy costs	Low-energy EC fans and LED lighting	Included
Comfortable operation	Height-adjustable base frames, adjustable footrests and unobstructed knee space	Configurable
Seamless process integration	Internal service connections for mains power, data, compressed air, gases, fluid feedline hubs and equipment	Included / Configurable
Integrated equipment	Space for or fully integrated process equipment such as centrifuges (+ refrigerated option), sterility testing, automation equipment etc	Optional
Simplified product transfer	Lightweight innovative vacuum seal doors with foot-operated release, wide clear openings, and angled transfer chamber bases	Tailored to isolator
Organised tools & materials	Integrated hanging rails, hooks, trays, and shelving	Optional
Visible processes	CCTV, display monitors and intercom systems	Optional

Automated activity measurement	Integrated dose calibrator dipper measures activity via the ionisation chamber, with foot-operated control for hands-free operation	Optional
Safe dose preparation	Integrated lead shielded generator drawers and vial/syringe lifters for protected elution and filling	Optional

Standard Configuration Options

Extract	Total loss	Thimble	Recirculating
Chamber pressure	Negative	Positive
Entry chamber	Single	Custom
Lead shielding	25mm	50mm
Generator storage	50mm lead	60mm lead

Supporting You and Your Isolator
for Life

Amercare supports the ongoing performance, reliability and safe operation of all isolators with a range of in-stock consumables, replacement components, planned servicing , and available technical support. This ensures consistent operation, reduced downtime, and long-term support throughout the lifecycle of your system.
