Automated Dose Dispenser

The manipulation of heavily shielded syringes and vials for high activity 511keV isotopes can be complex, time-consuming and physically challenging. The Amercare Automated Dose Dispenser (ADD) is designed to simplify this by automating the dispensing of radiopharmaceuticals in unit doses or in multi dose vials.

Developed to replicate the manual syringe filling process, the ADD automates filling, dispensing and recapping operations for radiopharmaceutical applications. Whether used for PET dispensing, dose preparation, vial sub-dispensing or isotope handling within nuclear medicine environments, the ADD significantly reduces manual handling, improves dispensing repeatability and minimises operator finger dose exposure.

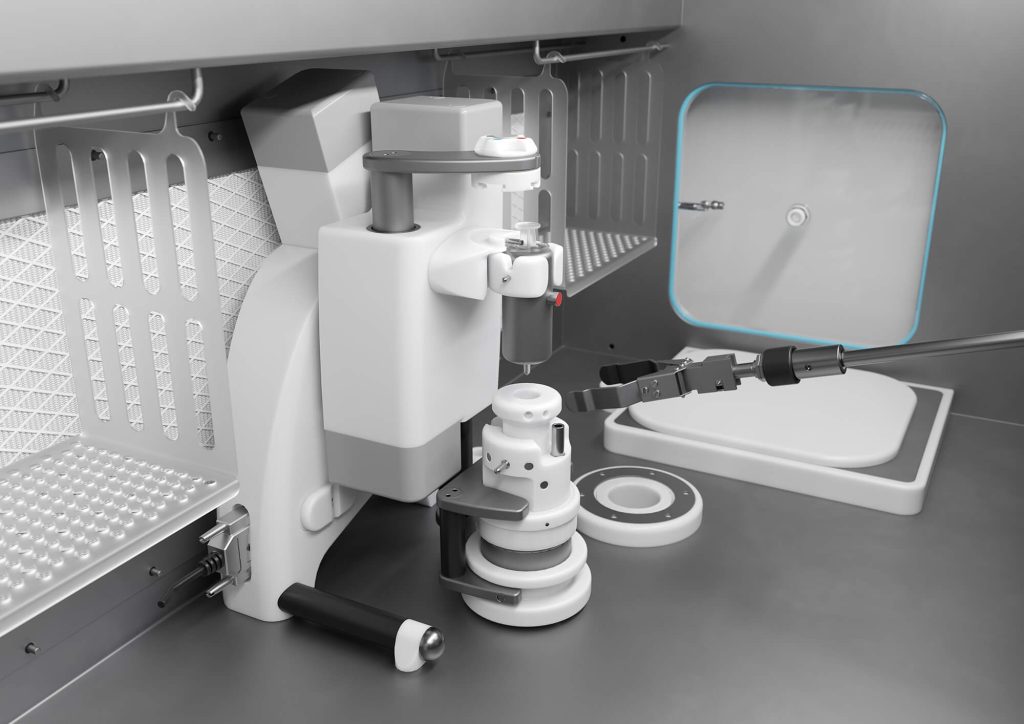

Suitable for use as a standalone dispensing solution or integrated within isolators, including the Amercare PET Dispensing Isolator, as well as hot cells and cabinets, the ADD provides a flexible platform for modern radiopharmacy and nuclear medicine operations.

Request a Quote Download Brochure

Radiopharmaceutical Dispensing

The Automated Dose Dispenser is designed to support fast-paced radiopharmacy dispensing operations where efficiency and accuracy are critical.

Improve Workflow Efficiency with Automated Dispensing

Advanced and automated functions provide greater process control whilst reducing the need for operator intervention:

Automated syringe fill volume	Automates filling to a precise set volume
Add function	Enables in-syringe dilution or activity adjustment
Empty function	Allows sub-dispensing and volume adjustment in multiple aliquots
Integrated syringe recapping	Reduces risk of needlestick injury
Multiple aliquot dispensing	Supports flexible dose preparation and sub-dispensing
Adjustable drip elimination pullback	Minimise drips and product wastage
Programmable user calibration settings	Supports accurate and repeatable dispensing across syringe sizes
Mimics manual filling	Syringe-to-vial and vial-to-syringe transfers
Vial shield detection	Confirms safe before operation
Variable needle penetration depth	Maximises product recovery and minimises wastage
Touchscreen control	Facilitates simple, intuitive operation
Pressure equalisation (optional)	Helps maintain the vial at atmospheric pressure during dispensing

Increase Throughput with Rapid Dispensing Cycles

Reduce handling time, improve workflow efficiency and support higher throughput dispensing with rapid automated dispensing cycles.

The ADD completes a full dispensing cycle, from syringe loading to capped syringe removal, in typically less than 45 seconds, with cycle times as low as:

28 seconds to dispense 1ml
48 seconds to dispense 9ml

Accurate and Repeatable Dose Preparation

Designed to support accurate and repeatable dose preparation with compatibility for use with 25mm needles and syringe sizes up to 10ml.

Dispensing Accuracy
2ml syringe	0.02ml
5ml syringe	0.05ml
10ml syringe	0.10ml

Minimum Dispensing Volumes
2ml syringe	0.02ml
5ml syringe	0.10ml
10ml syringe	0.10ml

High Activity Isotope Dispensing

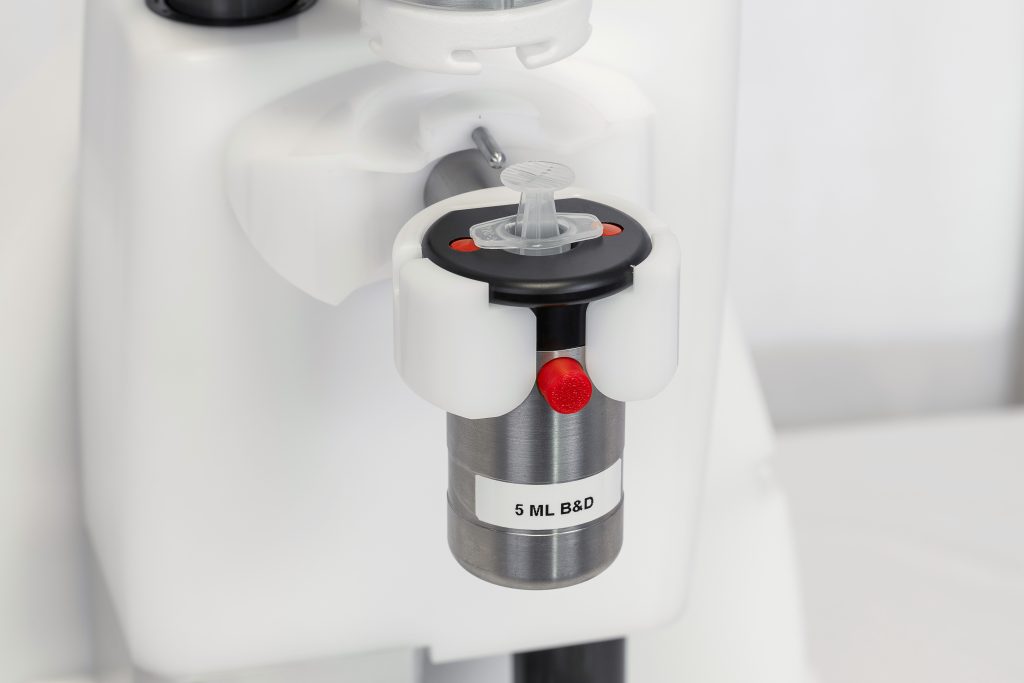

Designed with integrated tungsten vial and syringe shielding, the Automated Dose Dispenser reduces the physical challenges associated with manipulating heavy shielded components during PET and radiopharmaceutical dispensing applications.

	Tungsten Syringe Shielding	Tungsten Vial Shielding
Compatibility	Compatible with most syringe types up to 10ml	Suitable for vials up to 30ml
Configuration	Various diameters available to suit the syringe	Custom vial adaptors are available on request
Shielding	9mm wall thickness (12.5mm lead equivalent)	18mm wall thickness (25mm lead equivalent)

Constructed from high-quality corrosion-resistant stainless steel and plastic materials, the ADD is suitable for cleaning and sanitising using commercially available products commonly used within highly regulated environments.

Automated Radiopharmaceutical Dispensing

Whether you require a standalone dispensing solution or a fully integrated system within an isolator, hot cell or cabinet, the Amercare Automated Dose Dispenser can be configured to suit your application.

Improve dispensing consistency, streamline radiopharmaceutical workflows and support safer handling within high activity isotope environments.

Speak to Amercare about integrating the Automated Dose Dispenser into your facility.

PET Dispensing Isolator

With fully integrated Automated Dose Dispenser.

Amercare’s PET dispensing isolators combine aseptic containment, radiation shielding and automation to support the specific demands of PET dispensing in nuclear medicine applications.
