bioquell amercare gassing isolator

Amercare x Bioquell (Ecolab) Gassing Isolator

Amercare can supply isolators with the Bioquell (Ecolab) Port II and L-4 VHP generators.

The L-4 generator provides a reliable and robust solution for vapourised hydrogen peroxide (VHP) generation, while the Port II offers higher capacity with rapid cycle capability, achieving batch decontamination in as little as 25 minutes.

This configuration also enables multiple isolators to be connected for coordinated, multi-step gassing processes, supporting higher throughput and more complex operational workflows.

Request a QuoteDownload Brochure

✓ Batch decontamination in as little as 20 minutes

✓ Ability to connect multiple isolators for multi-step processes

✓ Supports high-throughput workflows

Amercare Isolators are fully configurable to your requirements through our complementary design service.

gassing isolator
gassing isolator

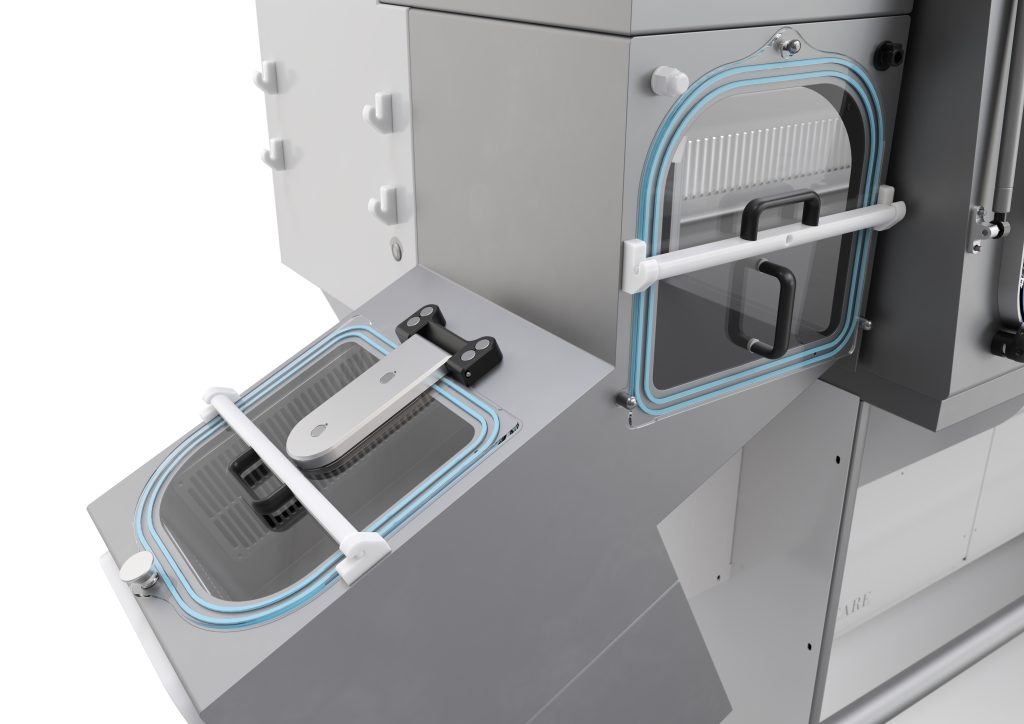

Gassing isolator integrated waste chutes
Controlled disposal with lockable waste chutes and rigid pods or heat sealable bagging out systems available.
gassing isolator visor open
Hinged front panel allows large items of equipment to be moved in and out of the process section.
gassing isolator racking
Racking and trolley options for efficient presentation of loads to hydrogen peroxide vapour.

Amercare Isolator Features

Market-leading quality

Fully welded high-grade 3mm 316 stainless steel construction with satin bead blasted and passivated finishes



 Included
Clean air environments

Equivalent to EU GMP Grade A and ISO 14644-1 Class 5



 Included
High-efficiency filtration

HEPA filtered inlet and extract air delivers 99.995% efficiency at 0.3 microns (MPPS)



 Included
Gas/odour filtration

Additional carbon filtration tailored to application



 Optional
Controlled product transfer

Timed interlock transfer chamber control ensures controlled, sequential door operation and defined dwell times



 Included
Power loss protection

Battery backup maintains essential functions including door operation, interlocks and airflow monitoring



 Included
Superior corrosion resistance

Constructed from high-grade 316 stainless steel with aluminium and plastic external surfaces



 Included
Accessible cleaning

Fully accessible external surfaces, with all internal areas accessible through the glove ports



 Included
Contain spillages

Seamless internal bases with no air grilles, cavities, or inaccessible areas



 Included
Accessible testing

Accessible test points for routine maintenance and validation protocols



 Included
Safe filter change

Prevent exposure during filter changes with safe change exhaust filters



 Included
Maintain room pressure

Prevent disruption to surrounding environments during testing with an integrated bypass valve



 Optional
Bio-decontamination

Gassing connections, gassing doors and a range of hydrogen peroxide vaporisation (HPV) systems available



 Included
Controlled waste disposal

Integrated waste bins and chutes with lock functionality



 Optional
Enhanced validation

Further testing packages available including DQ, FAT, IQ, OQ and gas cycle development (optional)



 Included
Leak integrity validation

Integrated automated pressure decay testing with out-of-hours function



 Included
Real-time status

Microprocessor-based control system monitors and displays isolator status in real-time



 Included
Safe operation assurance

A digital alarm system monitors key functions and provides immediate visual and audible alerts



 Included
Continuous environmental insight

Real-time continuous particle monitoring via an integrated isokinetic sampling head inside the chamber



 Optional
Full monitoring capability

Connections available for gas sterilisation, viable and non-viable air sampling, biological sampling and bespoke requirements



 Configurable
Data traceability

Automatic data recording and optional printout functionality



 Optional
Facility-wide monitoring and control

Connect seamlessly with BMS and EMS platforms



 Optional
Save energy costs

Low-energy EC fans and LED lighting



 Included
Comfortable operation

Height-adjustable base frames, adjustable footrests and unobstructed knee space



 Configurable
Seamless process integration

Internal service connections for mains power, data, compressed air, gases, fluid feedline hubs etc



 Configurable
Integrated equipment

Space for or fully integrated process equipment



 Optional
Simplified product transfer

Lightweight innovative vacuum seal doors with foot-operated release, wide clear openings, and angled transfer chamber bases



 Tailored to isolator
Organised tools & materials

Integrated hanging rails, hooks, trays, and shelving



 Optional
Visible processes

CCTV, display monitors and intercom systems



 Optional

Standard Configuration Options

Glove ports34
Chamber pressure Negative Positive
Transfer chamber Standard Rapid transfer
Entry chamber Standard Gloved
Extract Total loss / thimbleRecirculating
Gas generator Fully integrated Freestanding connections

Technical Information

Transfer Chamber Air Quality Type D or E, High Flow Turbulent ECGMP Grade A
Carcass Materials Grade 316L Stainless Steel
Main Chamber Pressure (+ve) +100Pa (+ve) or -250Pa (-ve)
Transfer Chamber Pressure (+ve) +70Pa (+ve) or -300Pa (-ve)
Leak Classification ISO 14644 Class 3
Main Chamber Inlet Filter HEPA Grade H14
Main Chamber Extract Filter HEPA Grade H14
Transfer Chamber Inlet Filter HEPA Grade H14
Transfer Chamber Extract Filter HEPA Grade H14
Secondary Extract Filter HEPA Grade H14
Air Extract Rate 0.08m3/s for main chamber plus 0.04m3/s for each transfer chamber.
Lighting Low Energy lighting to provide glare free minimum 750lux at the working position.
Sound level Less than 65DbA at the working position.
Power supply Either 240v or 110v AC
Service requirements Electrical supply & ducted extract with remote fan.

Supporting You and Your Isolator
for Life

Amercare supports the ongoing performance, reliability and safe operation of all isolators with a range of in-stock consumables, replacement components, planned servicing, and available technical support. This ensures consistent operation, reduced downtime, and long-term support throughout the lifecycle of your system.

ServicesProducts

Contact our team

Tailor your isolator to your specific requirements with our complimentary design service.

Arrange your free consultation and no-obligation quote today.

Request a QuoteDownload Brochure
